How to Implement Keycloak SSO Authentication in Liferay DXP

21 mins read 8893 views
How to Implement Keycloak SSO Authentication in Liferay DXP article image

The article is written by mutual efforts of Vitaliy, Senior Liferay Developer, and Svitlana, Writer.

When your business is growing, the company’s information system consequently expands. At a certain point, it becomes not just a single web site, but a whole ecosystem with a bunch of sub-systems for different purposes. Each of these sub-systems may be dedicated to a specific business branch, they may have different content and different URLs, but they are still part of a single system. Thus, they should have a single user database and a single entry point for any of those systems. Once the user has logged into one system, they should be able to access any other sub-system without a repeated login for their convenience, time-saving, and security. This is where Single Sign-on helps.

In this article, we’ll take step by step Liferay Single Sign-on integration, suggest one of the best tools applicable for this purpose, and unveil the useful tips that may help implement it seamlessly in less than no time. Anyone interested in Liferay portal development, be it a seasoned programmer or someone who takes their first steps in software development, will find the answers to their long-troubling questions of Liferay SSO implementation here.

What is an SSO

Single Sign-on (SSO) is an authentication scheme that allows a user to log in with a single ID and password to any of several related yet independent software systems. Here you can see a workflow of a typical SSO solution:

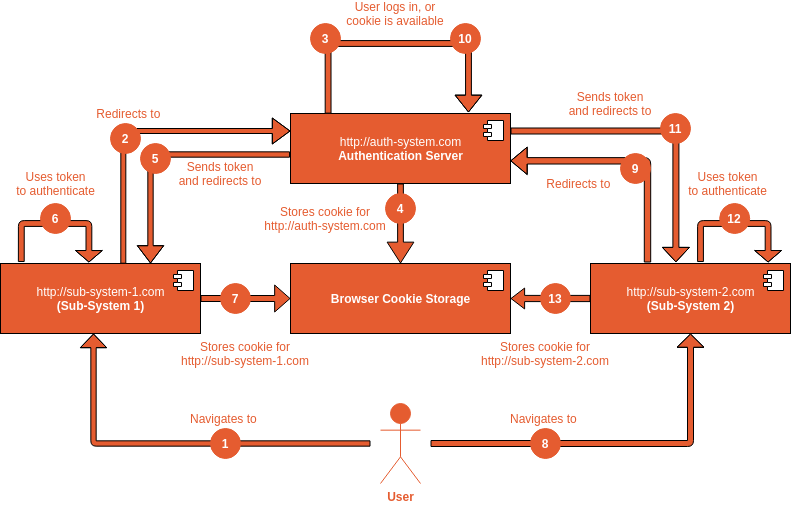

SSO Workflow
Image 1. SSO Workflow

But what stays behind the curtains? How does the scheme work? A user accesses a sub-system and is redirected to the central Authentication Server. They log in there and are redirected back to the sub-system they accessed, being automatically logged in there. Once they access another sub-system, they become automatically logged in as well.

In this case, a user is also redirected to the central authentication server. As they are already logged in there, no additional sign-in is required, so they are redirected back to the original URL, being automatically logged in. But all these actions are performed behind the scene, and a user has a feeling of smooth transitions between different sub-systems with different domains.

SSO benefits. Liferay as an SSO client

SSO provides you with inarguable advantages. Its implementation ensures:

  • Better user experience: navigation between connected systems is smooth and clean. Once a user has logged into one system, they don’t need to enter login/password anywhere else.
  • Better password management: a user has to remember only one login/password combination. Thus, they can set a stronger password, so there is less risk of forgetting it
  • Security: the user’s credentials are stored in a single authentication server, which typically has reliable protection against hacker attacks.
  • Resource savings: IT administrators have to maintain only the central authorization server. Developers don’t need to implement authentication in their applications. They just use the authorization server.

But why may we need an SSO implementation in Liferay taking into account it has its own mechanisms of user’s authentication, using the email address, login or user ID?

Well, Liferay is a powerful tool: you can build an intranet on it, or a public website, customer portal, or whatever you need. And, for most cases, Liferay’s built-in authorization system is enough, and it satisfies a broad scope of business needs. But sometimes, the Liferay portal itself can be just a part of a larger web-system, which consists of different connected sub-systems:

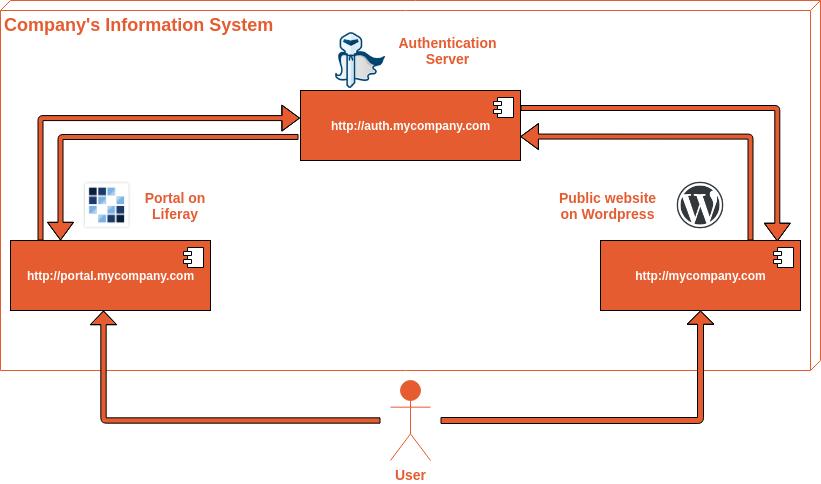

Liferay as SSO Client



Image 2. Liferay as SSO Client

In the example above, the company’s information system consists of the portal, built on Liferay, and a public website, built on WordPress. They both have their own domains, but they use a single authentication server for user authorization. At a certain point, even a new sub-system with a new domain, implemented on a different technology, can be created and integrated using the same authorization server.

But before we dive deep into SSO integration, let’s decide on the tool that will serve as one of the best fits for Single Sign-on implementation in Liferay.

What is Keycloak

Keycloak is an open source software product, which allows Single Sign-on with Identity Management and Access Management for modern applications and services. It’s maintained by RedHat Inc., a huge international software company. Besides SSO, it has a lot of other features: 2-factor authentication, user registration, LDAP integration, social login, etc.

Why use and install Keycloak in Liferay becomes obvious when considering the extensive benefits it can provide:

  • Authorization & Authentication: user sign-in to any connected system with only one account;
  • Security: user’s personal data are protected and safe;
  • Up-to-Date: regular updates and new features releases
  • Scalability: can be scaled and adapted to the business needs, no restrictions on users/accounts count
  • Open Source: it’s a completely open source product, all code updates are continuously maintained
  • Active Community: allows you to get quick and professional answers to possible questions.

Liferay-Keycloak integration

Now, let’s go into technical details of an SSO implementation between Liferay and Keycloak. Keycloak will act as an Authentication Server, while the Liferay portal will be a client application.

Once a user signs in to the portal, they should be redirected to the Keycloak server, where they enter login and password from their Keycloak account. After a successful sign-in, they should be redirected back to the portal and become automatically logged in there.

The following chapters will explain how to make this configuration on the Keycloak and Liferay side. We’ll use the latest versions of Keycloak (9.0.3) and Liferay (7.3.1 CE GA2) available at the moment.

Keycloak side

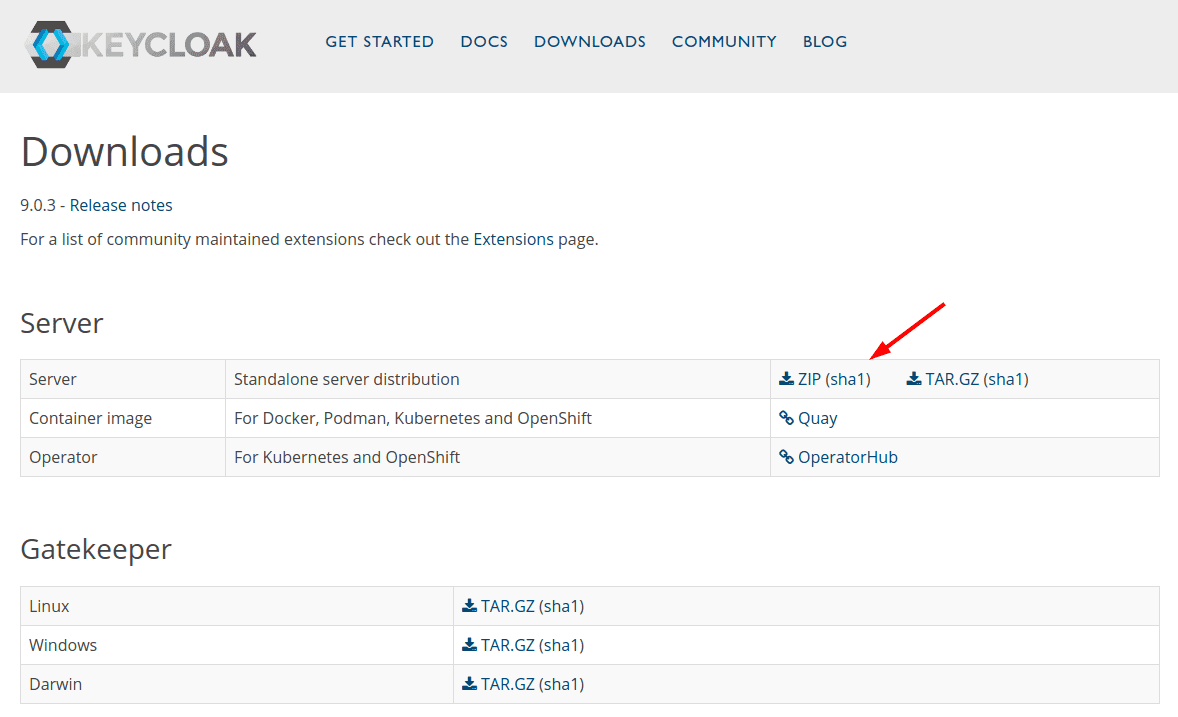

First of all, download and install Keycloak server from the official website:


Keycloak download



Image 3. Keycloak download

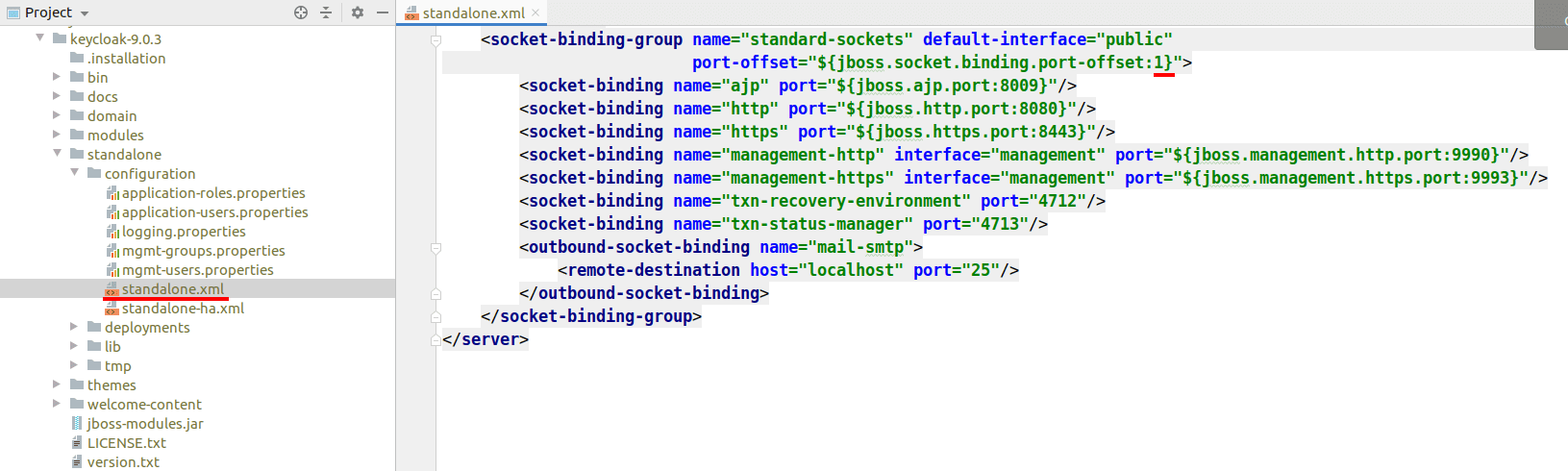

Keycloak is run on 8080 port by default. As Liferay also runs on this port, we need to change it to another one (for example, 8081). Modify the file keycloak-9.0.3/standalone/configuration/standalone.xml file, and change the port-offset value from 0 to 1:


Keycloak default port change



Image 4. Keycloak default port change

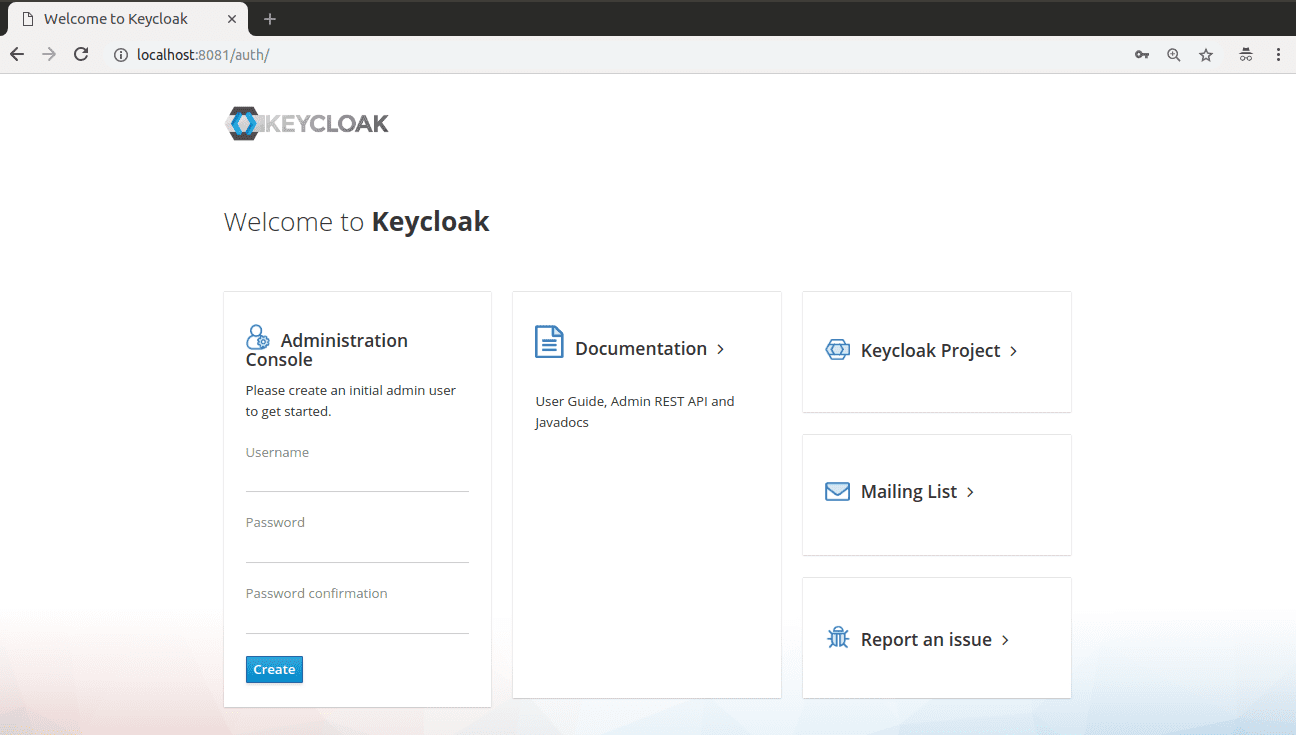

Run Keycloak server with keycloak-9.0.3/bin/standalone.sh command (or standalone.bat). After Keycloak has started, you will see the welcome page:


Keycloak Welcome page



Image 5. Keycloak Welcome page

Create the default administrator user and sign in. You should be landed to the Realm Settings page. Click on OpenID Endpoint Configuration link and copy the configuration:

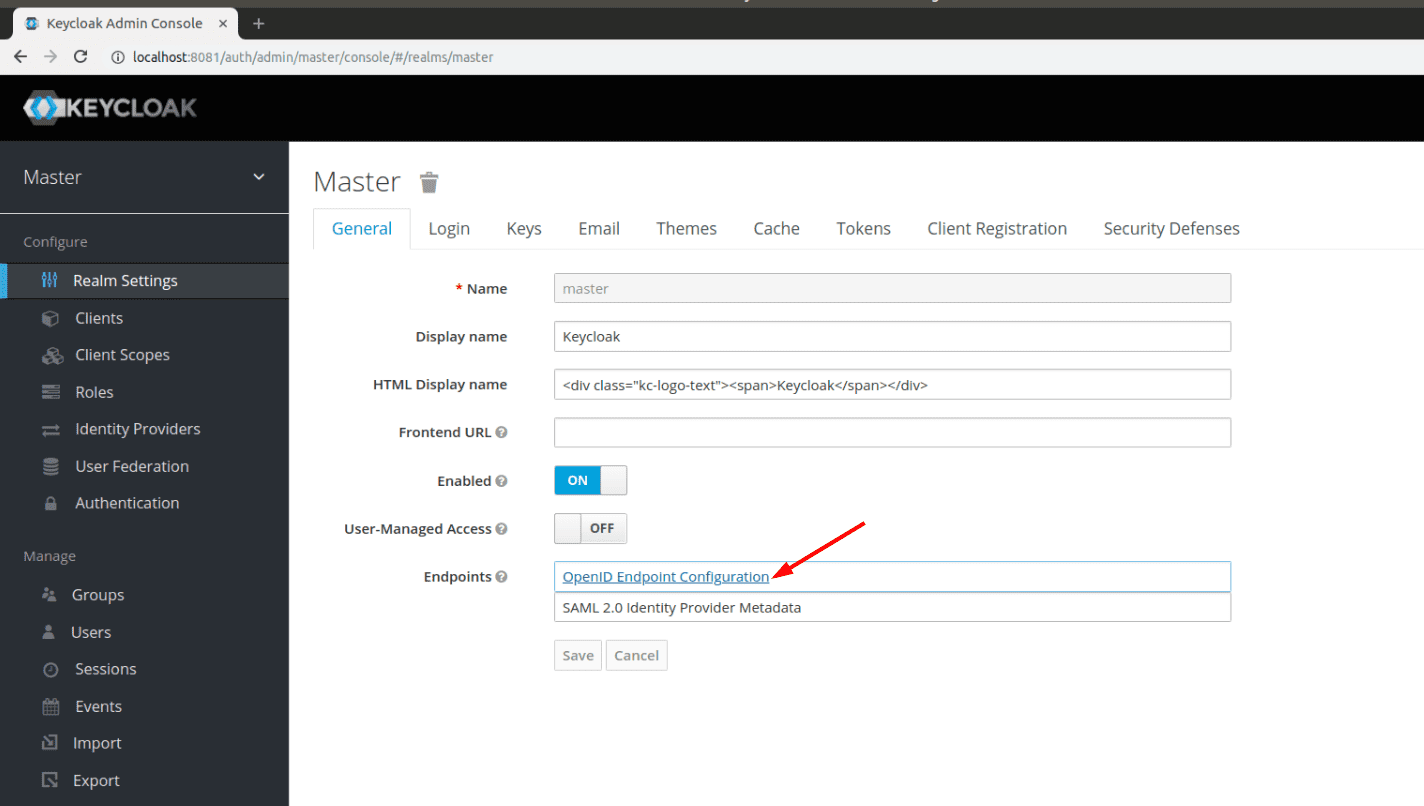

Realm settings



Image 6. Realm settings

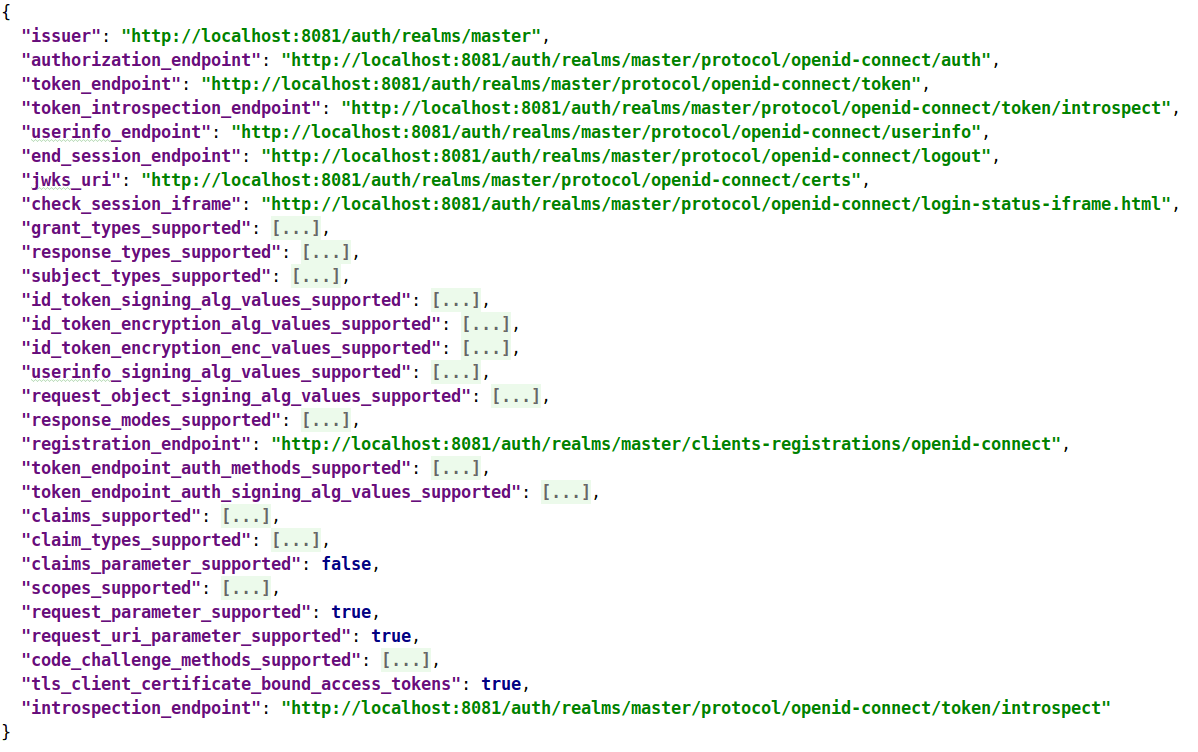

You should see the JSON configuration for OpenID Endpoint, like this:


OpenID Endpoint configuration



Image 7. OpenID Endpoint configuration

You’ll need some of these values later, during Keycloak and Liferay 7 SSO configuration.

Now it’s time to create a client for OpenID Connect. You should go to Clients and create a new Client:

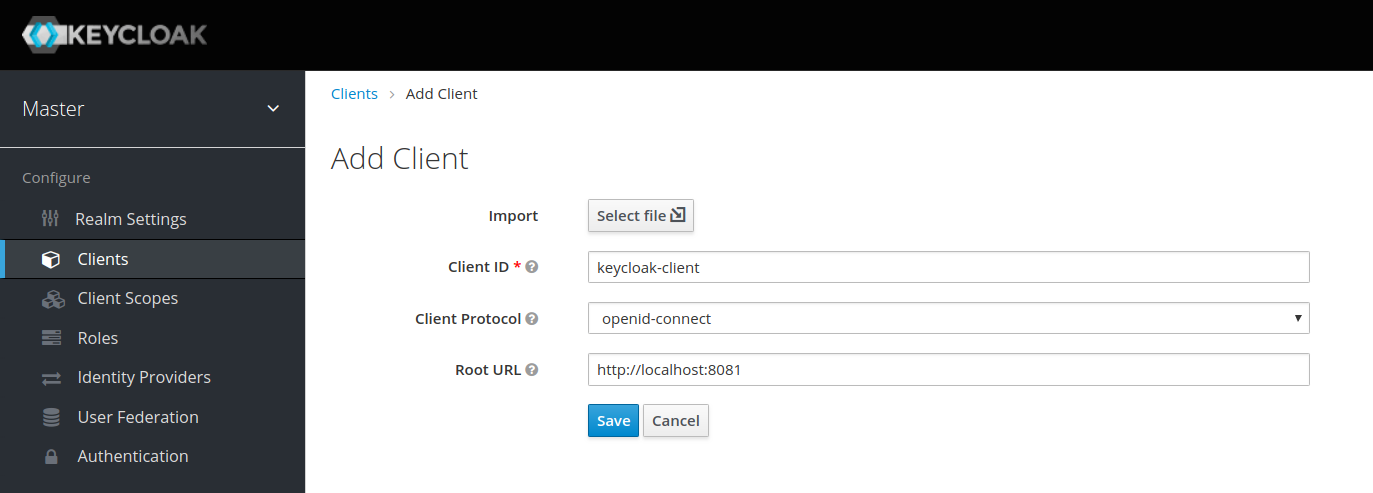

Adding of a new Keycloak Client



Image 8. Adding of a new Keycloak Client

Define a unique Client ID, select openid-connect: as Client Protocol and define the Root URL.

The next step is to save the Client and set the Client configuration:

  • Client ID and Name;
  • Access Type to confidential;
  • Valid Redirect URIs to *.

The following image will appear on your screen:

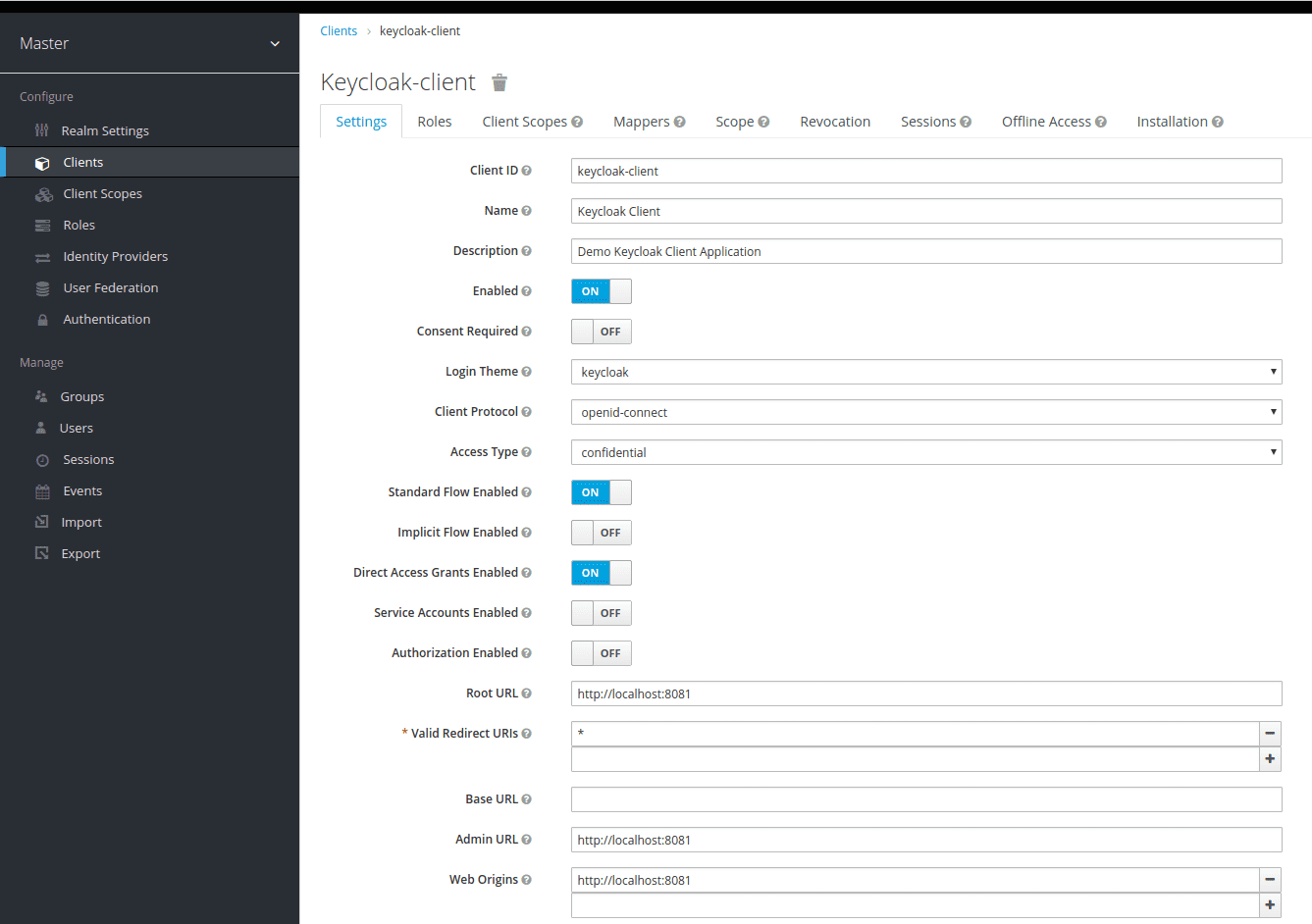

Keycloak Client configuration



Image 9. Keycloak Client configuration

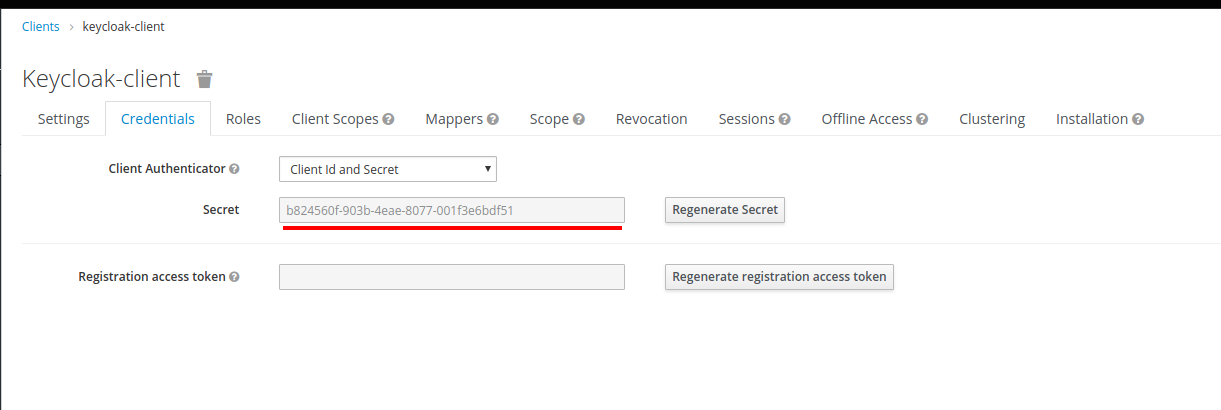

After that, go to the Credentials tab and copy the client’s secret:


Keycloak Client credentials



Image 10. Keycloak Client credentials

You will also need to create an Identity Provider. Go to the Identity Providers tab and create a new Identity Provider. Select Keycloak OpenID Connect from the list:

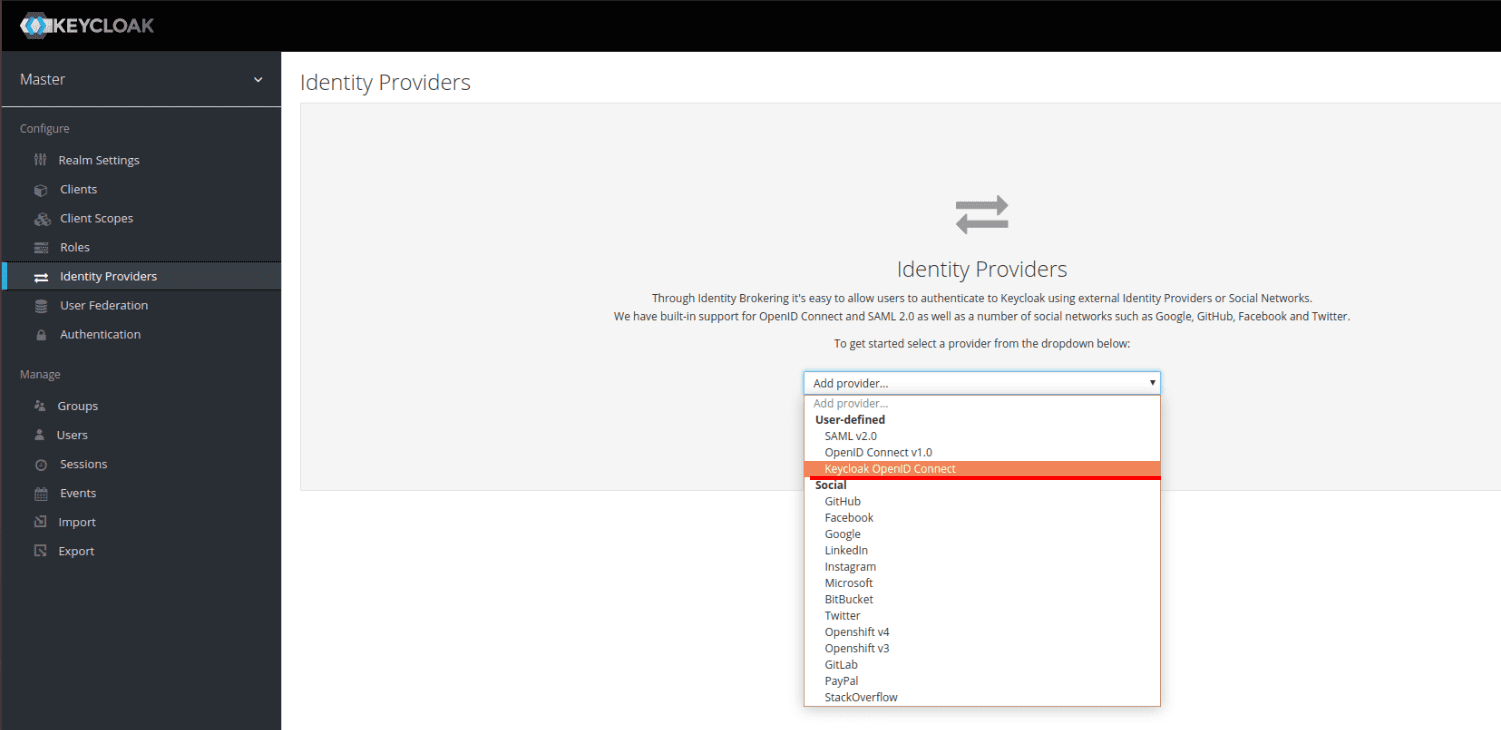

Adding a new Identity Provider



Image 11. Adding a new Identity Provider

Configure the Identity Provider by:

  • Defining a unique Alias for the Identity Provider;
  • Setting Authorization URL, Token URL and Logout URL to the values from the OpenID Endpoint Configuration above;
  • Setting Client ID and Secret to the values from the client’s configuration created above.

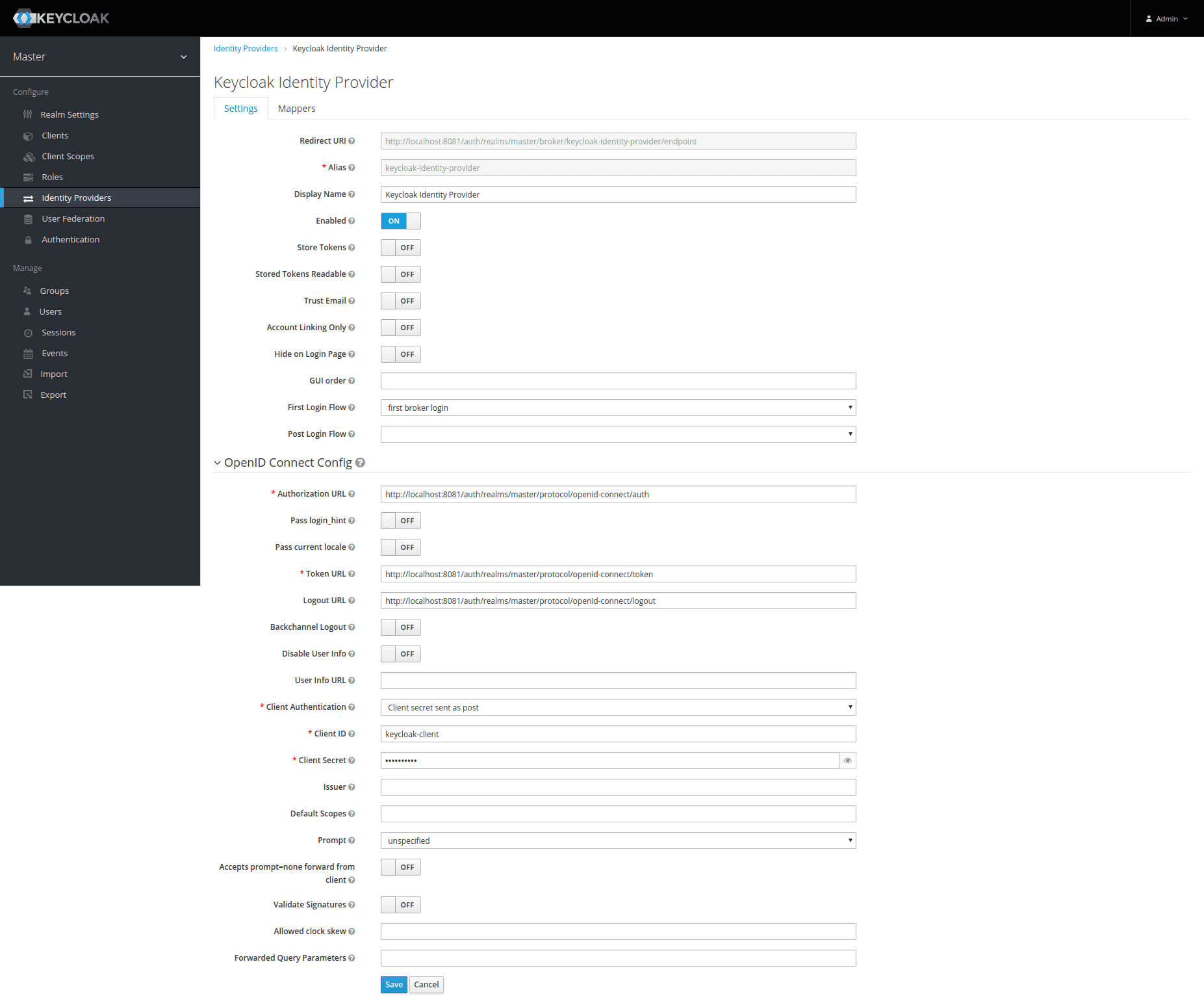

Identity Provider configuration



Image 12. Identity Provider configuration

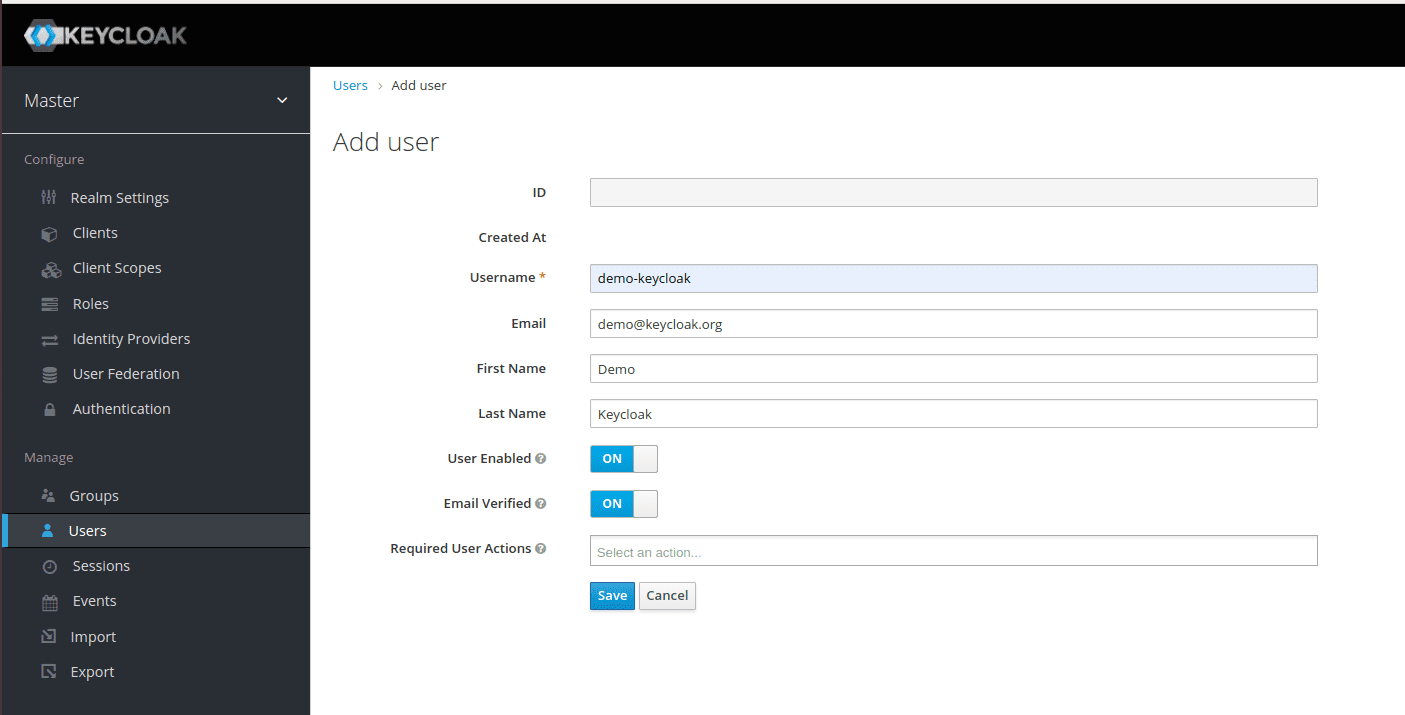

Having done all the mentioned above, you will get a finished configuration on the Keycloak side. But you also need to create a demo user in Keycloak to check the SSO functionality. Go to the Users tab and create a sample user to implement SSO in Liferay 7 and check it afterwards:


Keycloak user creation



Image 13. Keycloak user creation

You should set the user password on the Credentials tab:

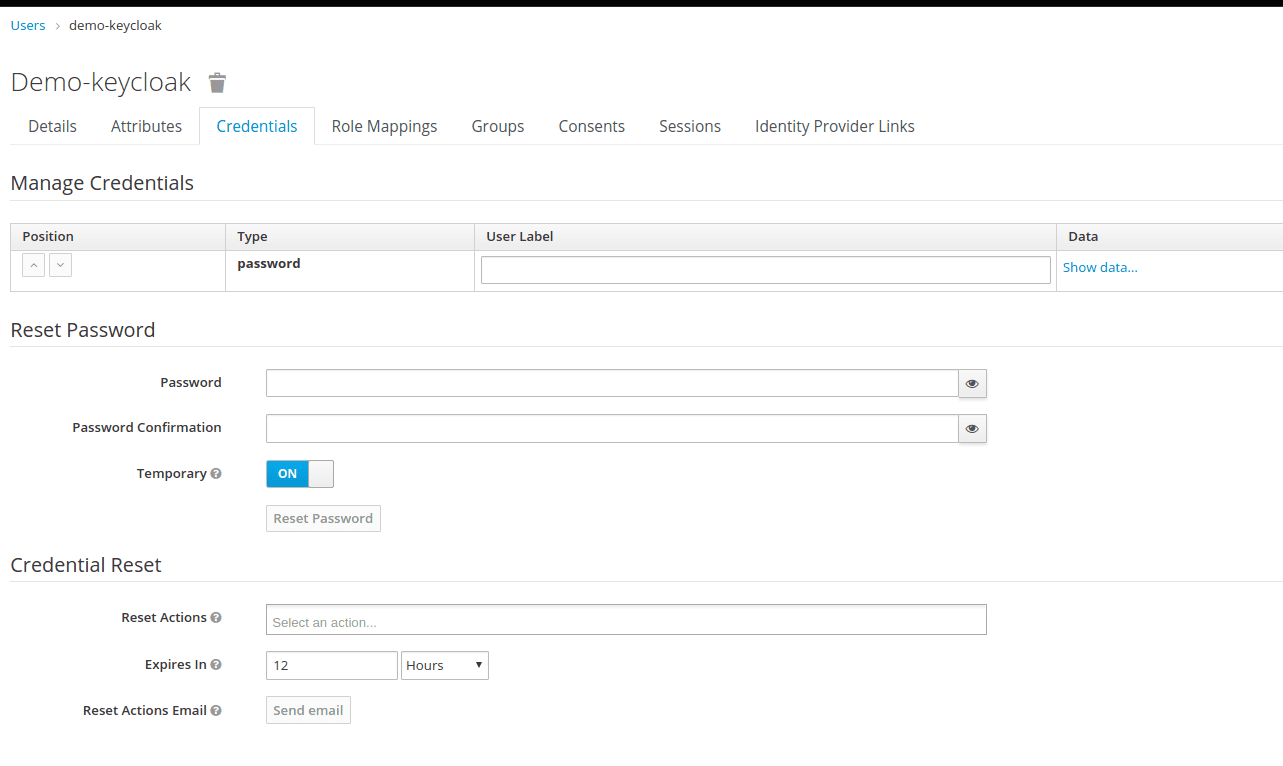

Keycloak user password settings



Image 14. Keycloak user password settings

After defining the password, try to sign in to Keycloak under the created user to verify the credentials.

Liferay side

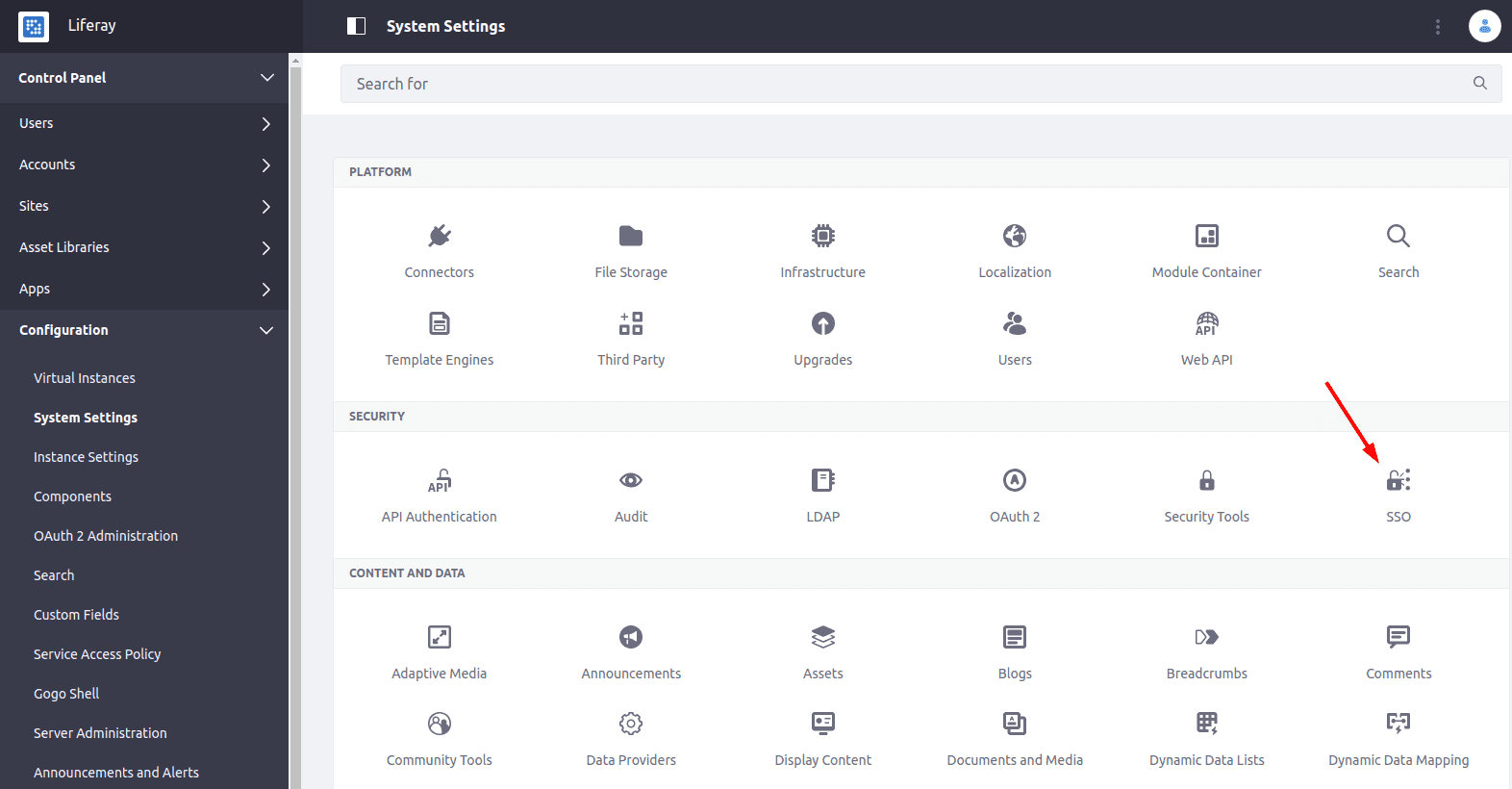

Liferay has a built-in SSO integration. To make the configuration of SSO, you should go to Control Panel -> Configuration -> System Settings -> Security -> SSO as it is shown in the picture below:


Liferay SSO configuration



Image 15. Liferay SSO configuration

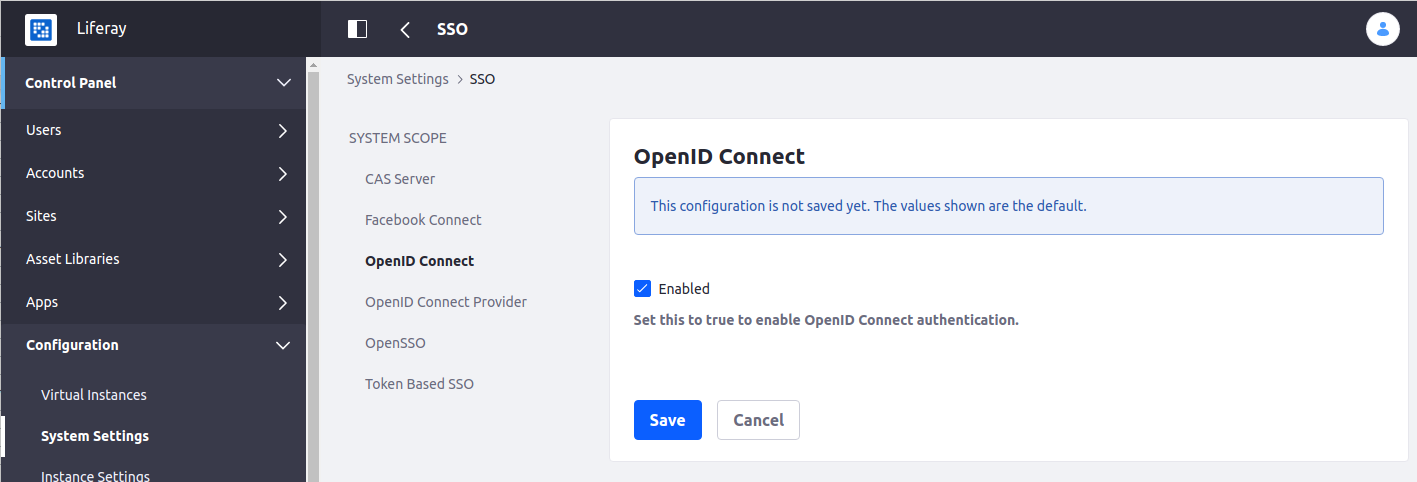

Go to OpenID Connect tab and enable the OpenID Connect authentication:


OpenID Connect authentication



Image 16. OpenID Connect authentication

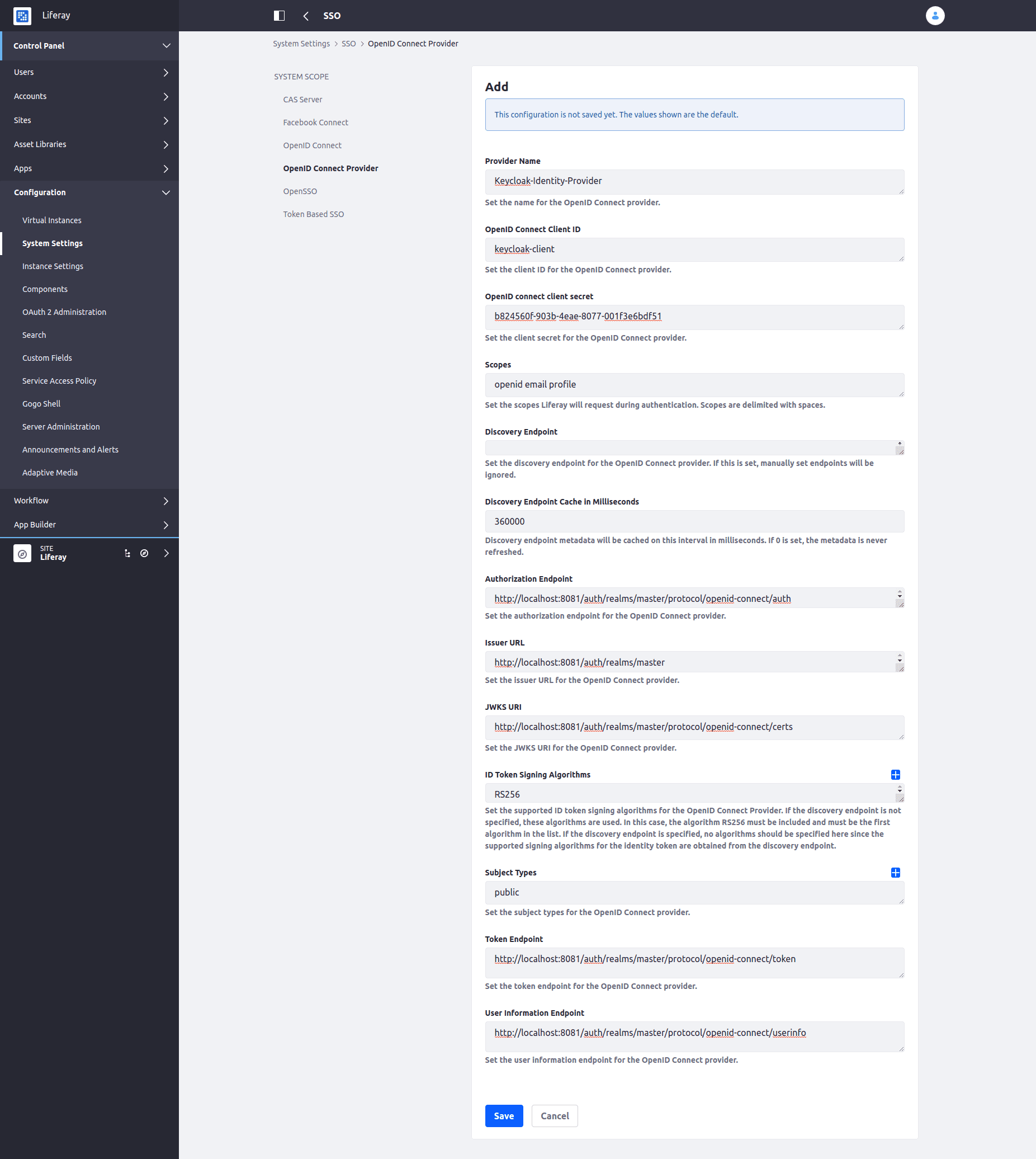

Then, go to the OpenID Connect Provider tab and create a new OpenID Connect Provider:


OpenID Connect Provider configuration



Image 17. OpenID Connect Provider configuration

After that, you should define the Provider Name, set the OpenID client ID and secret (see Keycloak client configuration above), define the URLs/endpoints as specified in OpenID Endpoint Configuration JSON. Here are sample configuration values:

Configuration Key Configuration Value
Provider Name Keycloak-Identity-Provider
OpenID Connect Client ID keycloak-client
OpenID Connect Client Secret b824560f-903b-4eae-8077-001f3e6bdf51
Scopes openid email profile
Discovery Endpoint
Discovery Endpoint Cache in Milliseconds 360000
Authorization Endpoint http://localhost:8081/auth/realms/master/protocol/openid-connect/auth
Issuer URL http://localhost:8081/auth/realms/master
JWKS URI http://localhost:8081/auth/realms/master/protocol/openid-connect/certs
ID Token Signing Algorithms RS256
Subject Types public
Token Endpoint http://localhost:8081/auth/realms/master/protocol/openid-connect/token
User Information Endpoint http://localhost:8081/auth/realms/master/protocol/openid-connect/userinfo

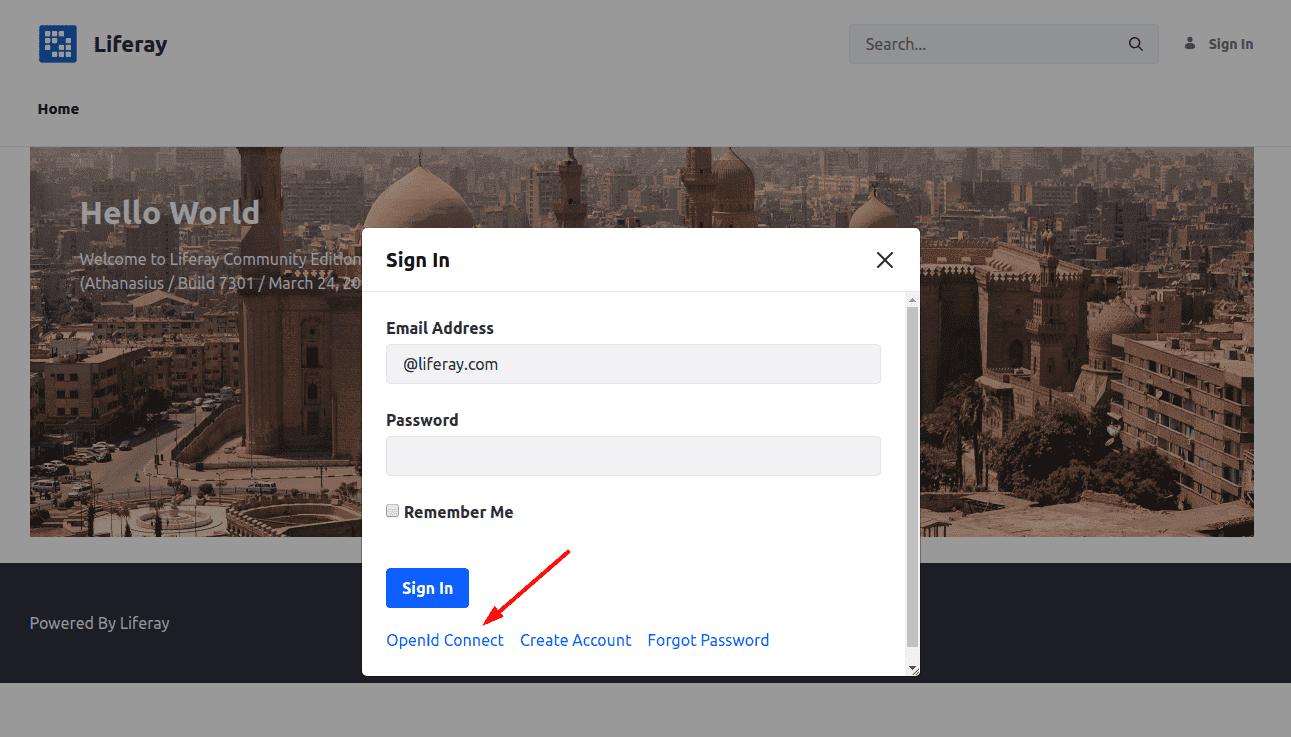

Finally, we can check the SSO functionality in action. Click on Sign In link in Liferay, and click on OpenId Connect link:


Liferay Sign In — OpenId Connect



Image 18. Liferay Sign In — OpenId Connect

You’ll be shown a list of available OpenId Connect Providers:

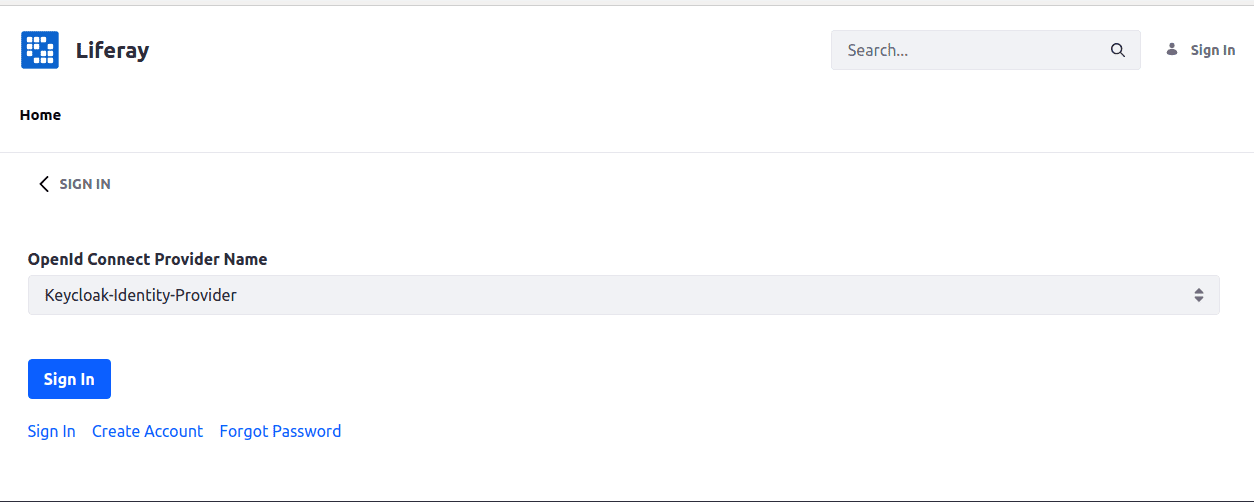

Liferay Sign In — OpenId Connect Provider



Image 19. Liferay Sign In — OpenId Connect Provider

Basically, there should be only one configured above unless anything else is set up in your Liferay environment.

Select the identity provider, configured for Keycloak, and click the Sign In button. You’ll be redirected to the Keycloak Sign In form:

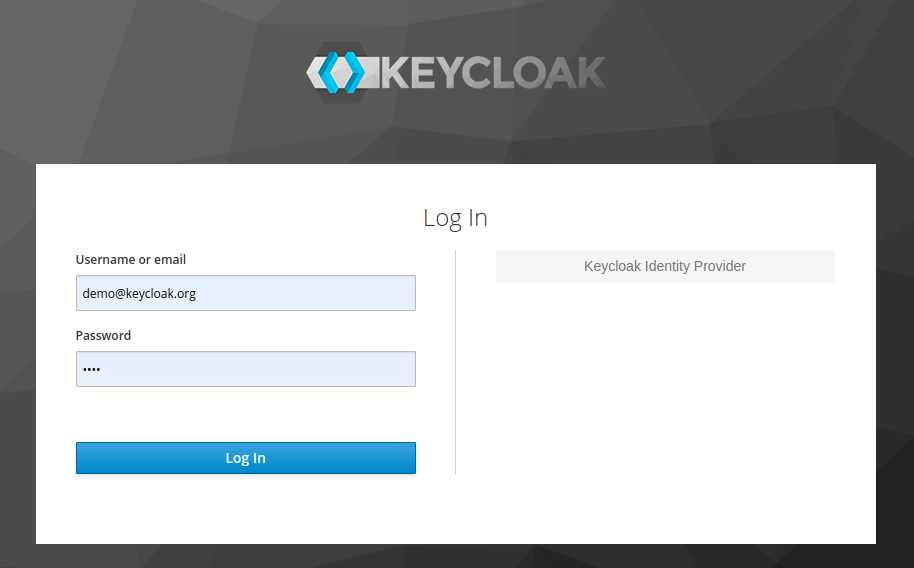

Keycloak Sign In form



Image 20. Keycloak Sign In form

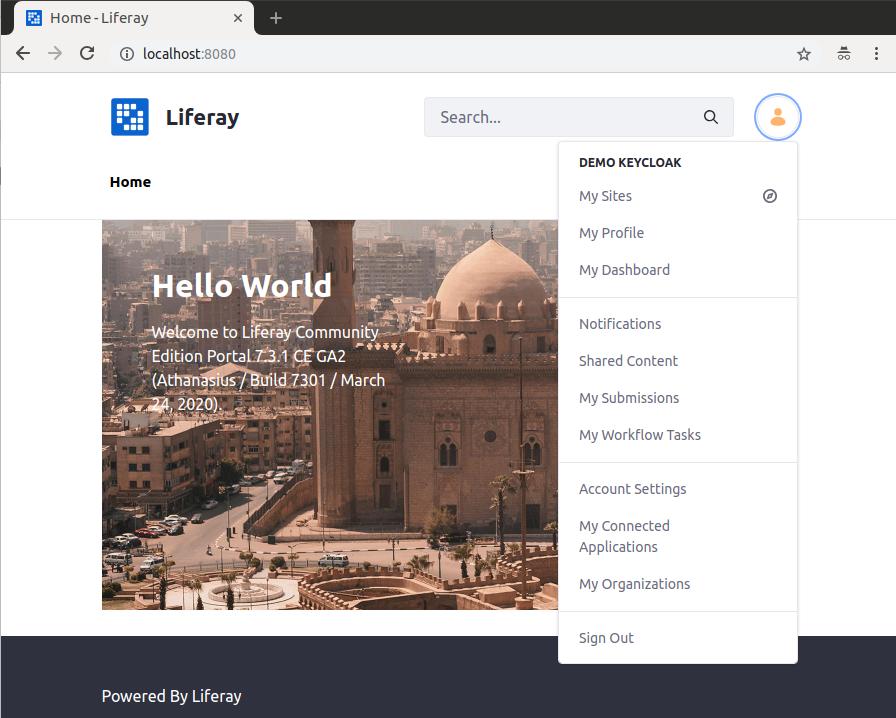

Log in in Keycloak (with the credentials of the created Keycloak user), and you’ll become redirected back to Liferay and logged in there automatically:


Signed in Liferay User



Image 21. Signed in Liferay User

In fact, a new Liferay User is created behind the scene with the same profile values (first name, last name, email, etc.) as the Keycloak user and signed in automatically. Next time when a user signs in with Keycloak, Liferay will recognize that the user is already existing, and will just sign in it.

This is how SSO authorization works for Keycloak with Liferay. Everything is configurable, and no code implementation is required: you just configure client and identity provider in Keycloak, configure provider in Liferay, and everything is working out-of-the-box. But taking a deeper look, you may notice there are a couple of issues with this kind of SSO in Liferay 7 configuration:

  • Keycloak is not set as a default authorization point: the user needs to click the OpenId Connect link, then select the OpenId Connect Provider from the list, and only then they are redirected to the Keycloak Sign In form;
  • Single Logout (SLO) is not working: when a user is signed out from Liferay – they are not automatically signed out from Keycloak.

The next chapter will show how to overcome these issues and create a full-featured SSO solution with Keycloak and Liferay.

Liferay customization for Keycloak

Even though Liferay SSO integration for Keycloak is configurable, it can be customized from code. Liferay provides a bunch of extension endpoints, which developers may use for customization purposes. In this chapter, we’ll use a servlet filter for automatic redirect to Keycloak during the sign-in process and a logout post action for SLO implementation. Let’s assume that you have already configured Liferay workspace (IDE, project/workspace configuration are not covered in this article). Liferay Gradle workspace for Liferay 7.3.1 GA 2 will be used in the examples below.

Making Keycloak a default authorization endpoint

If SSO authorization with Keycloak is intended to be a default sign-in mechanism, it’s desired to make the automatic redirect to the Keycloak Sign In form once the user hits the Sign In link in Liferay. It will simplify the user experience, as the user does not need to navigate between different sign-in configuration screens: they just should click Sign In, and they will be landed to the Keycloak Sign In form. Unfortunately, this can’t be done in Liferay DXP SSO configuration. But, fortunately, such behavior can be achieved with a custom servlet filter that we’ll cover below.

You need to create a new module in your Liferay workspace with a filter class KeycloakLoginFilter.

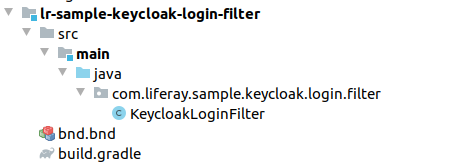

Module files structure:


Keycloak Log-in Filter Module Files structure



Image 22. Keycloak Log-in Filter Module Files structure

bnd.bnd file:

1
2
3
Bundle-Name: LR Sample Keycloak Login Filter
Bundle-SymbolicName: com.liferay.sample.keycloak.login.filter
Bundle-Version: 1.0.0

build.gradle file:

1
2
3
dependencies {
   compileOnly group: "com.liferay.portal", name: "release.portal.api", version: "7.3.1-ga2-3"
}



KeycloakLoginFilter file:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
package com.liferay.sample.keycloak.login.filter;
import com.liferay.portal.kernel.log.Log;
import com.liferay.portal.kernel.log.LogFactoryUtil;
import com.liferay.portal.security.sso.openid.connect.OpenIdConnectProviderRegistry;
import com.liferay.portal.security.sso.openid.connect.OpenIdConnectServiceHandler;
import org.osgi.service.component.annotations.Component;
import org.osgi.service.component.annotations.Reference;
import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.Collection;
@Component(
       immediate = true,
       property = {
               "servlet-context-name=",
               "servlet-filter-name=Keycloak Login Filter",
               "url-pattern=/c/portal/login"
       },
       service = Filter.class
)
public class KeycloakLoginFilter implements Filter {
   @Override
   public void init(FilterConfig filterConfig) {
   }
   @SuppressWarnings("unchecked")
   @Override
   public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse,
                        FilterChain filterChain) throws IOException, ServletException {
       try {
           HttpServletRequest request = (HttpServletRequest) servletRequest;
           HttpServletResponse response = (HttpServletResponse) servletResponse;

           //Get OpenId Providers
           Collection<String> openIdConnectProviderNames =
                   openIdConnectProviderRegistry.getOpenIdConnectProviderNames();
           if (openIdConnectProviderNames == null || openIdConnectProviderNames.isEmpty()) {
               filterChain.doFilter(servletRequest, servletResponse);
               return;
           }
           // Get first OpenID Provider
           String openIdConnectProviderName = openIdConnectProviderNames.iterator().next();
          // Request Provider's authentication
          openIdConnectServiceHandler.requestAuthentication(openIdConnectProviderName, request, response);
       } catch (Exception e) {
           _log.error("Error in KeycloakLoginFilter: " + e.getMessage(), e);
       } finally {
           filterChain.doFilter(servletRequest, servletResponse);
       }
   }
   @Override
   public void destroy() {
   }
   @Reference
   private OpenIdConnectProviderRegistry openIdConnectProviderRegistry;
   @Reference
   private OpenIdConnectServiceHandler openIdConnectServiceHandler;
   private static final Log _log = LogFactoryUtil.getLog(KeycloakLoginFilter.class);
}



This filter intercepts all the requests to /c/portal/login URL (for Liferay Sign In) and performs the OpenId Connect Provider authentication (configured for Keycloak in our case). Deploy the module, and you’ll see that clicking on the Sign In link will redirect users to the Keycloak Sign In form automatically.

Note: with this approach, you may be not able to sign in as a Liferay user anymore (or even as an admin, because the user is redirected to Keycloak automatically, without passing credentials). To make it possible to sign in as Liferay administrator, create a Keycloak user with the same email and just sign in with Keycloak.

SLO implementation

Try to sign out from Liferay, and then try to sign in again. You’ll see that the user will be signed in automatically, without entering the credentials on the Keycloak Sign In form. This happens because log out from Liferay does not imply logging out from Keycloak. Obviously, as we use Keycloak for authorization, we’ll want to use it for logout as well: once a user signs out in Liferay, they should also be signed out in the authorization provider (Keycloak). This is called Single Logout (SLO). But it is not supported in the OOTB SSO configuration in Liferay. However, it can be implemented with a custom post logout action. Now let’s check how to do it.

Create a new module in your Liferay workspace with a KeycloakLogoutPostAction class.

Module files structure:


Keycloak Logout Action module files structure



Image 23. Keycloak Logout Action module files structure

bnd.bnd file:

1
2
3
Bundle-Name: LR Sample Keycloak Logout Event
Bundle-SymbolicName: com.liferay.sample.keycloak.logout.action
Bundle-Version: 1.0.0

build.gradle file:

1
2
3
dependencies {
   compileOnly group: "com.liferay.portal", name: "release.portal.api", version: "7.3.1-ga2-3"
}



KeycloakLogoutPostAction file:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
package com.liferay.sample.keycloak.logout.action;
import com.liferay.portal.kernel.events.ActionException;
import com.liferay.portal.kernel.events.LifecycleAction;
import com.liferay.portal.kernel.events.LifecycleEvent;
import com.liferay.portal.kernel.json.JSONFactoryUtil;
import com.liferay.portal.kernel.json.JSONObject;
import com.liferay.portal.kernel.log.Log;
import com.liferay.portal.kernel.log.LogFactoryUtil;
import com.liferay.portal.kernel.util.Portal;
import com.liferay.portal.kernel.util.PrefsProps;
import com.liferay.portal.kernel.util.PropsKeys;
import com.liferay.portal.kernel.util.StringUtil;
import com.liferay.portal.security.sso.openid.connect.OpenIdConnectProvider;
import com.liferay.portal.security.sso.openid.connect.OpenIdConnectProviderRegistry;
import org.osgi.service.component.annotations.Component;
import org.osgi.service.component.annotations.Reference;
import javax.portlet.PortletPreferences;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.Collection;
@Component(
       immediate = true,
       property = "key=logout.events.post",
       service = LifecycleAction.class
)
public class KeycloakLogoutPostAction implements LifecycleAction {
   @Override
   public void processLifecycleEvent(LifecycleEvent lifecycleEvent) throws ActionException {
       try {
           HttpServletRequest request = lifecycleEvent.getRequest();
           HttpServletResponse response = lifecycleEvent.getResponse();
           Collection<String> openIdConnectProviderNames =
                   openIdConnectProviderRegistry.getOpenIdConnectProviderNames();
           if (openIdConnectProviderNames == null || openIdConnectProviderNames.isEmpty()) {
               _log.warn("No OpenID Connect Providers found.");
               return;
           }
           String openIdConnectProviderName = openIdConnectProviderNames.iterator().next();
           OpenIdConnectProvider openIdConnectProvider =
                   openIdConnectProviderRegistry.getOpenIdConnectProvider(openIdConnectProviderName);
           Object oidcProviderMetadata = openIdConnectProvider.getOIDCProviderMetadata();
           String oidcJson = oidcProviderMetadata.toString();
           JSONObject oidcJsonObject = JSONFactoryUtil.createJSONObject(oidcJson);
           Object authEndpoint = oidcJsonObject.get("authorization_endpoint");
           String authEndpointUrl = authEndpoint.toString();
           String logoutEndpoint = StringUtil.replaceLast(authEndpointUrl, "/auth", "/logout");
           String redirectUri = getRedirectUrl(request);
           String logoutUrl = logoutEndpoint + "?redirect_uri=" + redirectUri;
           response.sendRedirect(logoutUrl);
       } catch (Exception e) {
           _log.error("Error in KeycloakLogoutPostAction: " + e.getMessage(), e);
       }
   }
   private String getRedirectUrl(HttpServletRequest request) {
       String portalURL = portal.getPortalURL(request);
       long companyId = portal.getCompanyId(request);
       PortletPreferences preferences = prefsProps.getPreferences(companyId);
       String logoutPath =  prefsProps.getString(preferences, PropsKeys.DEFAULT_LOGOUT_PAGE_PATH);
       return portalURL + logoutPath;
   }
   @Reference
   private Portal portal;
   @Reference
   private PrefsProps prefsProps;
   @Reference
   private OpenIdConnectProviderRegistry openIdConnectProviderRegistry;
   private static final Log _log = LogFactoryUtil.getLog(KeycloakLogoutPostAction.class);
}



This action is triggered immediately after logout in Liferay. It takes the OpenId Connect Provider, configured for Keycloak, and performs the request to the Keycloak logout endpoint. After a successful logout, the user is redirected to the pre-configured logout path in Liferay.

Having deployed the module, and you’ll see that SLO is working: once you’re logged out in Liferay, you’re logged out in Keycloak.

Conclusions

Single Sign-on gives a lot of benefits, especially when it comes to a complex system with multiple related, but yet independent subsystems: better user experience and password management, reliable security, and resource savings, etc.

Keycloak is a software product with multiple authentication features, which allows you to set up an SSO provider in a pretty easy and configurable way. Liferay 7 Single Sign-on is supported out-of-the-box, and it can be connected to the Keycloak Provider with the System Settings in a Control Panel.

SSO between Liferay and Keycloak can be implemented just with the configuration on Keycloak and Liferay side. However, if that is not enough, such integration can be customized in code using Liferay’s extension endpoints, like servlet filters and logout post actions for customization of the behavior according to the business needs.

I hope, with the solutions we described in this article, Liferay Keycloak integration has become a bit easier and clearer task for you. If you still have any questions, want to share your own visions, or may search for assistance in Liferay development, don’t think twice to contact our Liferay development team for further collaboration.

Frequently Asked Questions

What is the practical use of SSO?
The SSO solution like Keycloak helps you manage authentication for different systems with a single user database.



This will save your time and money for implementation of the authentication functionality in each system as it’s provided by SSO and will simplify the end-user experience because they will have to sign in only once and remember only one username/password pair.

How complex is Liferay-Keycloak integration?

Keycloak integration can be established with a set of configuration steps on both the Liferay and Keycloak sides and may be accomplished during an 8-hour working day. However, if some kind of customization is needed, it will take more time, depending on the requirements.

What are the alternatives for Liferay Keycloak integration?

The main alternatives to Keycloak are Okta, Auth0, ForgeRock, LastPass, OneLogin, etc.

Let’s talk

We are here to assist with your questions. Write us a message, and we will get back to you shortly.

    Up to 200Kb .pdf, .doc, .docx or .txt file

    Great! Thank you

    The form was submitted successfully. We will contact you shortly. Meanwhile, we suggest checking out what our clients say about software development with Aimprosoft.

    Proceed to Clutch

    Featured in
